Grooved Pipe Couplings

High-quality grooved pipe couplings for fire protection,HVAC,and industrial piping systems.OEM,custom design are availabe.Fast delivery,competitive pricing.Get a quote today!

Send inquiry

Our facotry supply grooved pipe couplings for HVAC,fire protection,industrial pipe systems and other water-based piping systems,supporting OEM customers and contractors.Our products are compatible with standard grooved piping and available with EPDM,NBR,silicone or custom gaskets.

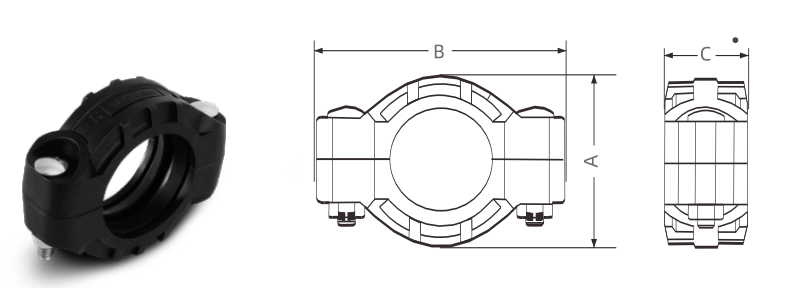

Nylon Grooved Pipe Couplings

The Nylon Grooved Pipe Couplings are designed to eliminate corrosion issues in low-pressure piping systems.Manufactured from glass fiber reinforced nylon using injection molding,they offer excellent strength,toughness,and long-term chemical resistance,making them ideal for demanding applications such as water treatment and demineralization systems.

Material & Construction:
Housing:glass fiber reinforced thermoplastic (nylon)

Rubber Gasket:EPDM with -30°C to +110°C temperature range,C-shaped or Flush-fit

Bolts & Nuts:SS304,SS316 according to ASTM A193 or ASTM A194

Size Range: DN25 – DN200

Please contact us for more details and sizes

Nominal Size	Pipe OD	Rated Working Pressures(Max.)	Pipe End Separation	Dimensions
Nominal Size	Pipe OD	Rated Working Pressures(Max.)	Pipe End Separation	A	B	C	Weight
mm inch	mm inch	psi bar	mm inch	mm inch	mm inch	mm inch	kgs lbs
25 1	33.70 1.315	300 20.67	0-1.6 0-0.06	60 2.362	93 3.661	44 1.732	0.23 0.51
32 1.25	42.40 1.669	300 20.67	0-1.6 0-0.06	73 2.874	102 4.016	44 1.732	0.26 0.57
40 1.5	48.30 1.900	300 20.67	0-1.6 0-0.06	85 3.346	114 4.488	45 1.772	0.35 0.77
50 2.0	60.30 2.375	300 20.67	0-1.6 0-0.06	98 3.858	128 5.039	45 1.772	0.42 0.92
65 2.5	73.00 2.875	300 20.67	0-1.6 0-0.06	111 4.370	141 5.551	46 1.811	0.45 1.00
65 2.5	76.10 3.000	300 20.67	0-1.6 0-0.06	108 4.252	148 5.827	46 1.811	0.50 1.10
80 3.0	88.90 3.500	300 20.67	0-1.6 0-0.06	128 5.039	160 6.299	47 1.850	0.53 1.17
100 4.0	114.30 4.500	300 20.67	0-3.2 0-0.13	164 6.457	181 7.126	52 2.047	0.60 1.32
125 5.0	141.30 5.563	200 13.78	0-3.2 0-0.13	192 7.559	248 9.764	52 2.047	1.15 2.53
150 6.0	168.30 6.625	200 13.78	0-3.2 0-0.13	209 8.228	241 9.488	54 2.126	1.61 3.54
200 8.0	219.10 8.625	150 10.33	0-3.2 0-0.13	287 11.299	329 12.953	62 2.441	2.56 5.64

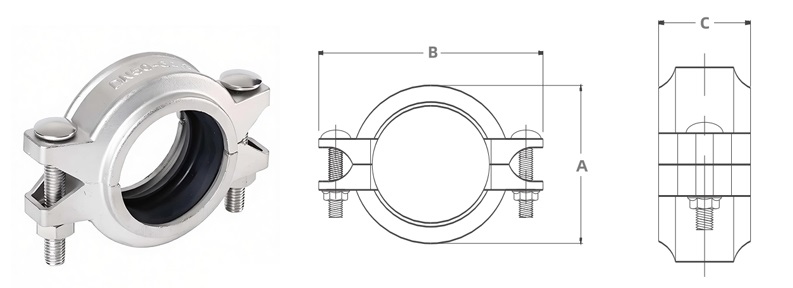

Stainless Steel Grooved Pipe Couplings

The Stainless Steel Grooved Pipe Couplings is a great economical and reliable choice,we can offer both of high pressure or low applications including RO and desalination systems.they are made of high quality 304 or 316 stainless steel and an EPDM gasket.
Material & Construction:
Housing:304,316,316L Stainless Steel to ASTM A351
Rubber Gasket:EPDM with -30°C to +110°C temperature range,C-shaped or Flush-fit
Bolts & Nuts:SS304,SS316 according to ASTM A193 and ASTM A194

Working Pressure:300psi-1500psi,

Size Range: DN25 – DN300

please contact us for more details and sizes

Nominal Size	Pipe OD	Pipe End Separation	Dimensions
Nominal Size	Pipe OD	Pipe End Separation	A	B	C	Weight
mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	kgs lbs
20 0.75	26.90 1.059	0-1.6 0-0.06	48 1.890	78 3.071	44 1.732	0.58 1.28
25 1.0	33.70 1.327	0-1.6 0-0.06	55 2.165	87 3.425	44 1.732	0.66 1.45
32 1.25	42.40 1.669	0-1.6 0-0.06	63 2.835	98 4.016	44 1.732	0.76 1.67
40 1.5	48.30 1.900	0-1.6 0-0.06	72 2.835	102 4.016	44 1.732	1.16 2.55
50 2.0	60.30 2.375	0-1.6 0-0.06	85 3.346	121 4.764	44 1.732	1.33 2.93
65 2.5	73.00 2.875	0-1.6 0-0.06	98 3.858	136 5.354	45 1.772	1.53 3.37
80 3.0	88.90 3.500	0-1.6 0-0.06	115 4.528	164 6.457	45 1.772	2.00 4.40
100 4.0	114.30 4.500	0-3.2 0-0.13	150 5.906	206 8.110	52 2.047	3.35 7.37
125 5.0	141.30 5.563	0-3.2 0-0.13	177 6.969	228 8.976	52 2.047	5.25 11.55
150 6.0	168.30 6.625	0-3.2 0-0.13	205 8.071	273 10.748	52 2.047	7.50 16.50
200 8.0	219.10 8.625	0-3.2 0-0.13	281 11.063	244 9.606	64 2.520	11.26 24.77
250 10.0	273.00 10.748	0-3.2 0-0.13	342 13.465	400 15.748	65 2.559	16.20 35.64
300 12.0	323.90 12.752	0-3.2 0-0.13	399 15.709	478 18.819	65 2.559	18.00 39.60

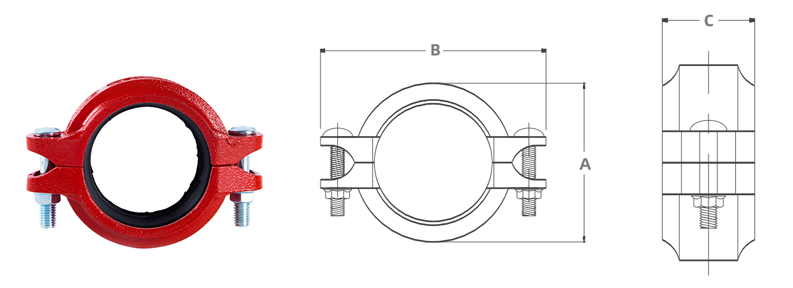

Ductile Iron Grooved Pipe Couplings

The ductile iron grooved pipe couplings are also available with high pressure or low pressure application

Material & Construction:

Housings:Ductile Iron to ASTM A536

Surface Finish:

◆Antirust paint red or blue

◆Hot dip zinc galvanized

◆ Epoxy power

◆ Dacromet

◆ TRFLOW(PTFE)

◆ RilsanPA11

Rubber Gasket:EPDM with -30°C to +110°C temperature range,C-shaped or Flush-fit

Bolts & Nuts:Carbon steel bolt and nut to ASTM A183,hot deep galvanized or dacromet coated

Working Pressure:300psi-1200psi,

Size Range: DN25 – DN300

Please contact us for more details and sizes

Nominal Size	Pipe OD	Pipe End Separation	Dimensions
Nominal Size	Pipe OD	Pipe End Separation	A	B	C	Weight
20 0.75	26.90 1.059	0-1.6 0-0.06	53 2.087	99 3.898	43 1.693	0.52 1.14
25 1.0	33.70 1.327	0-1.6 0-0.06	55 2.165	92 3.622	42 1.654	0.60 1.32
32 1.25	42.40 1.669	0-1.6 0-0.06	65 2.559	104 4.094	44 1.732	0.60 1.32
40 1.5	48.30 1.900	0-1.6 0-0.06	70 2.756	110 4.331	44 1.732	0.60 1.32
50 2.0	60.30 2.375	0-1.6 0-0.06	83 3.268	124 4.882	44 1.732	0.80 1.76
65 2.5	73.00 2.875	0-1.6 0-0.06	96 3.780	143 5.630	45 1.772	0.90 3.41
80 3.0	88.90 3.500	0-1.6 0-0.06	115 4.528	160 6.299	45 1.772	1.30 2.86
100 4.0	114.30 4.500	0-3.2 0-0.13	145 5.709	198 7.795	50 1.969	1.90 4.18
125 5.0	141.30 5.563	0-3.2 0-0.13	170 6.693	232 9.134	51 2.008	2.60 5.72
150 6.0	168.30 6.625	0-3.2 0-0.13	200 7.874	265 10.433	52 2.047	3.20 7.04
200 8.0	219.10 8.625	0-3.2 0-0.13	258 10.157	350 13.780	60 2.362	5.60 12.32
250 10.0	273.00 10.750	0-3.2 0-0.13	337 13.268	406 15.984	65 2.559	13.20 29.04
300 12.0	323.90 12.750	0-3.2 0-0.13	372 14.646	460 18.110	65 2.559	13.90 30.58
